DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design)

DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design)
DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design)

大画像 :  DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design)

商品の詳細:
起源の場所: 中国
ブランド名: WELLDONE
証明: CE/ISO9901:2008/ISO10004
モデル番号: DWF
お支払配送条件:
最小注文数量: 台分
価格: 8000USD/Set-350000USD/Set
パッケージの詳細: 木の場合のパッケージ+プラスチック フィルム
受渡し時間: 30-60 仕事日
支払条件: L/C、D ・ D ・ P、ハムスター、ウェスタン ・ ユニオン、MoneyGram
供給の能力: 10sets 月

DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design)

説明
電圧: 110V/220V/380V/415V/480V Hertz: 50Hz/60Hzの
設置力: 7.5KW-125KW 材料: CS/SUS304/SUS316L
暖房資源: 蒸気/電気/ガス/ディーゼル 重量: 500KGS-40000KGS
乾燥温度: 50-250℃ 乾燥の効率: 75%
制御する方法: ボタン/タッチ画面/リモート 特別な設計: 壁の付着力プロダクト/低温の乾燥
ハイライト:

fruit dryer machine

,

cabinet tray dryer

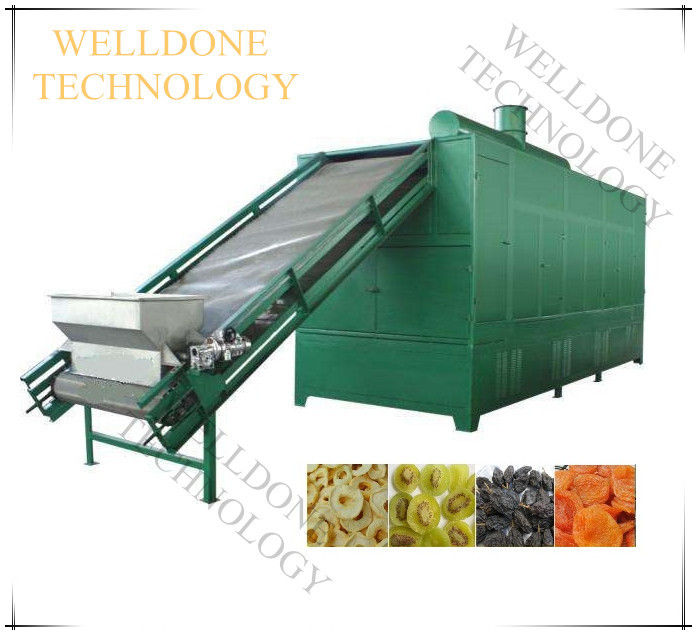

Description of Candied Fruit / Preserved Fruit / Confect Belt Dryer

Raw materials are uniformly fed on the mesh-belt / plate belt by distributor. The mesh-belt / plate belt is drawn and moved inside the dryer by a driving device. The dryer is consisted of several independent drying sections. Hot air circulated separately and independently in each section. Part of damp air will be exhausted by exhausting fan. Hot air penetrates the belt from top to bottom or from bottom to top, and this will complete the heat and mass transfer process. Moving speed of belt is adjustable. The top and bottom circulation units can be freely equipped according to customer's requirement.

DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design) 0





Features of Candied Fruit / Preserved Fruit / Confect Belt Dryer

◆◆ Different heating and circulation method is available for choice.

◆◆ Length , width and layer quantity of belt is designed based on production requirement.

◆◆ The machine pre-dehydration process could remove massive moisture on leaf surface, thus reduced the drying strength, and reduced the energy consumption.

◆◆ Special hot air drying system, increase material penetrability and drying rate.

◆◆ The adjustment of belt speed and the different section temperature control, it guaranteed the drying time and material quality and color.

◆◆ Strong magnetism iron removal device is available for choice, it could remove metal impurities effectively.





Application of Candied Fruit / Preserved Fruit / Confect Belt Dryer

◆DWF belt dryer is continuous-production drying equipment. The dryer being widely used for drying the piece, strip and particle shape materials in good ventilation. The dryer is suitable for de-watering fruit & vegetable which the moisture content is high and high drying temperature is not allowed. Drying speed of belt dryer is fast, evaporation strength is high and the product quality is good.
◆DWF belt dryer is widely used and support for drying various kind of material such as pigment, fiber, fruit & vegetable, briquette etc.





Technical Parameters of Candied Fruit / Preserved Fruit / Confect Belt Dryer

DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design) 1



Picture of Belt Dryer in Working

DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design) 2DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design) 3DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design) 4DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design) 5

DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design) 6DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design) 7
